Hi Jason Please proceed with the Google xTS test with the 15.541.6 FW and let me know if a failure occurs during the test. Thank you YK.Jung |
|
|

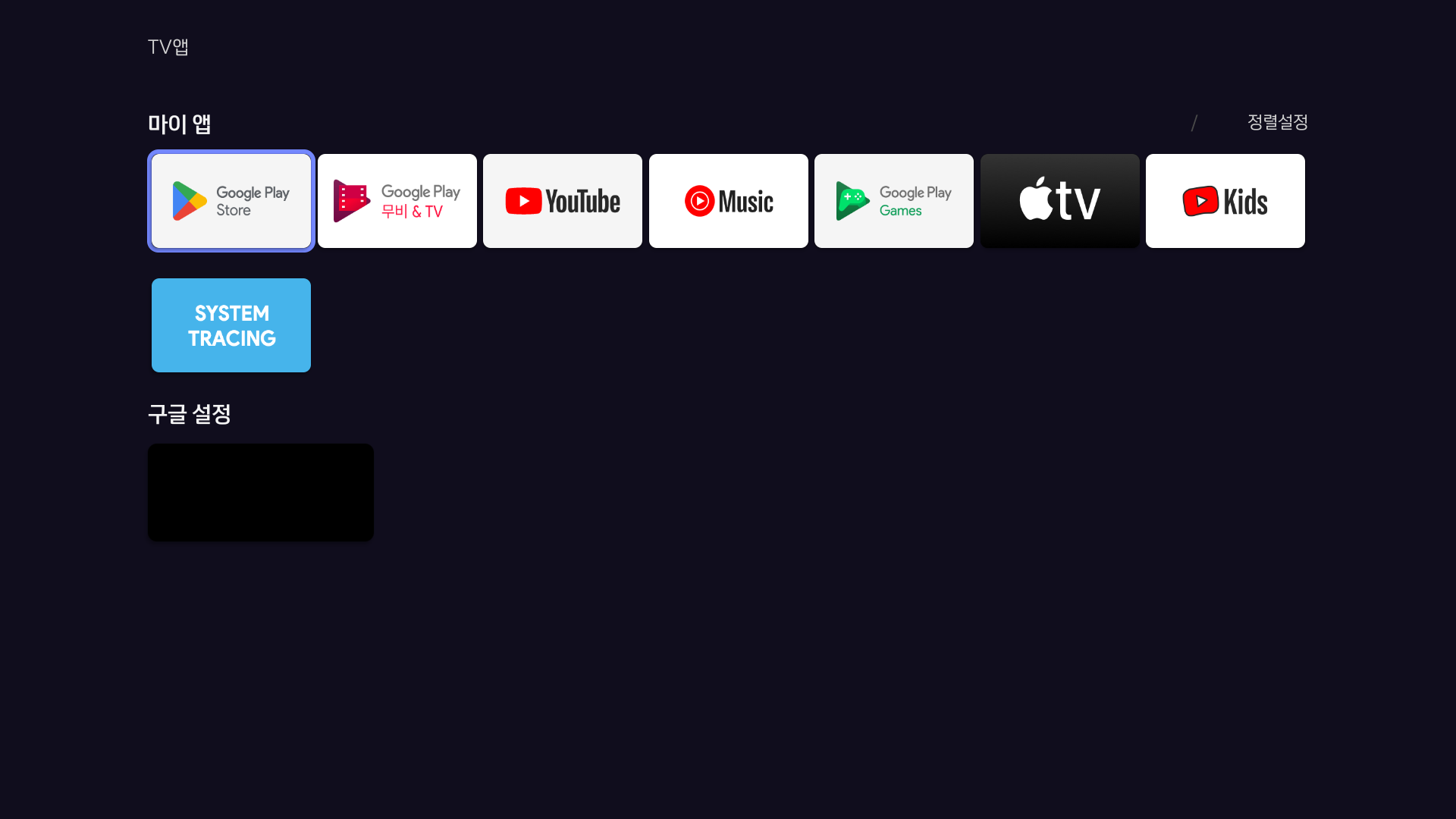

Hi Jason - About when I go to offline mode, settings icon is black I reported it to SKB https://jira.skbroadband.com/projects/BFXBTF/issues/BFXBTF-527 - About notifications indicator I read the specifications you sent me. I think , it's not clear if it's against Google requirement. I will discuss this with other manufacturers UI541 VCS BMT (This BMT schedule may be changed later ) 10/16 ~ 11/03 Thank you YK.Jung BFXBTF-527.png (73,030 bytes) image-2.png (188,976 bytes) |
|
|
Hi YK, >>I think , it's not clear if it's against Google requirement My concern is the keyword "noticeable", In my opinion, I think it's not obvious. As you can see the first requirement, "Device MUST include a notification indicator on Screen 0" This means that when we press Home button, we must see the notification indicator. But in current design, we need to press Home, then press up, then we can see the notification, As far as I remember, In ATV8 (KAON BOX), SKB placed the notification indicator in App page (not screen 0) page At that time, I reminded SKB that this design may violate the requirement, but SKB said KAON didn't report this violation. After we submitted to 3PL, the Google TAM said that SKB must move the notification indicator to screen 0 (the first screen when we press Home button) I think we can refer this case. Thanks, Jason |
|
|
HI Jason - About notifications indicator I reported it to SKB https://jira.skbroadband.com/browse/BFXBTF-528 And please let me know if there is an issue during xTS and SomkeTest Thank you YK.Jung |
|
|

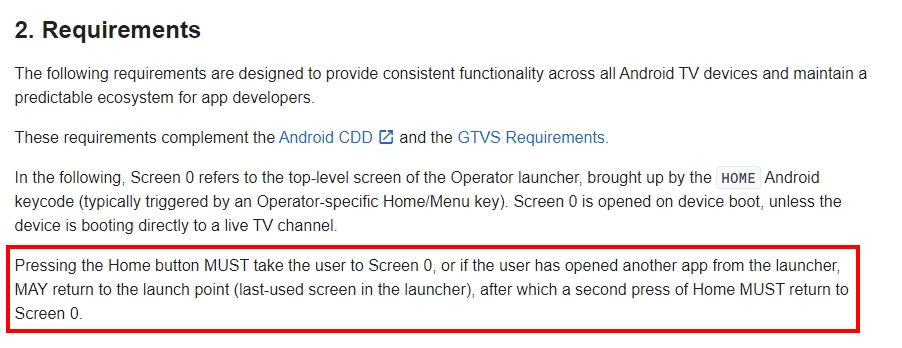

Hi YK, Please check the following requirement, (HomeRequirement.jpg) Verify that pressing the Home button from an open app goes straight to screen 0. If not, ensure it goes to the app launch point and a second press goes to screen 0. Reproduce Steps 1. Reboot device 2. Go to app page and launch YouTube then play a video 3. Press Home, the screen will return to the App list, a few seconds later, I saw the screen refresh, it kept in app list page This the design can meet the requirement "return to launch point", but this design is different from previous behavior, I remember the previous behavior will return to screen 0 4. then launch Youtube again, the Youtube will show the last video we played 5. Press Home, the screen will return to App list, a few seconds later, the screen return to black automatically (I think the screen return to LiveTV screen, in our side we can not see the live screen) This will violate the requirement, please refer to case_2.mp4 Additional, our QA also saw another case in Step 5. Press Home, the screen will return to App list, a few seconds later, the screen will return to YouTube video automatically. Please refer to case_3.mp4. Thanks, Jason case_3.mp4 (9,420,317 bytes) case_2.mp4 (11,379,482 bytes) HomeRequirement.jpg (192,836 bytes) |
|
|
Hi YK, Our QA reported a focus loss issue, Reproduce Steps 1. Reboot device 2. Go to app page and launch PlayMovie 3. Press Home, the screen will return to the App list, a few seconds later, I saw the screen refresh, it kept in app list page 4. Press Home again, the screen will return to screen 0. 5. Go to app page, we find that focus is lost. (dpad can not work) Thanks, Jason |
|
|
Hi YK, Our QA reported a 2nd focus loss issue, Reproduce Steps 1. Reboot device 2. Go to app page, and plug out the ethernet cable 3. Confirm the native UI is displayed 4. Insert the ethernet cable 5. the WebUI app page is displayed, but focus is gone, and menu on the left side is also gone. Additional issue 6. Press home at step 5, we can see the screen 0, but the left side menu has fewer options and the app list entry is gone Thanks, Jason |
|
|
Hi Jason CSS IP was changed 1.255.102.57 If HomeUI is not displayed , please change CSS IP Thank you YK.Jung image-3.png (139,998 bytes) |
|
|
Hi Jason > About #c14303 I reported it to SKB https://jira.skbroadband.com/projects/BFXBTF/issues/BFXBTF-529 > About #c14306 I reported it to SKB https://jira.skbroadband.com/projects/BFXBTF/issues/BFXBTF-530 > Our QA asked me how can we verify app sorting function in webUI. There is no app sort feature in webUI ( like UI540(OS10) / UI537(OS12) ) The app sort feature is only in nativeUI ( after LAN disconnect ) Thank you YK.Jung |
|
|
Hi Jason > About #c14302 I reported it to SKB https://jira.skbroadband.com/browse/BFXBTF-531 Thank you YK.Jung |
|
|

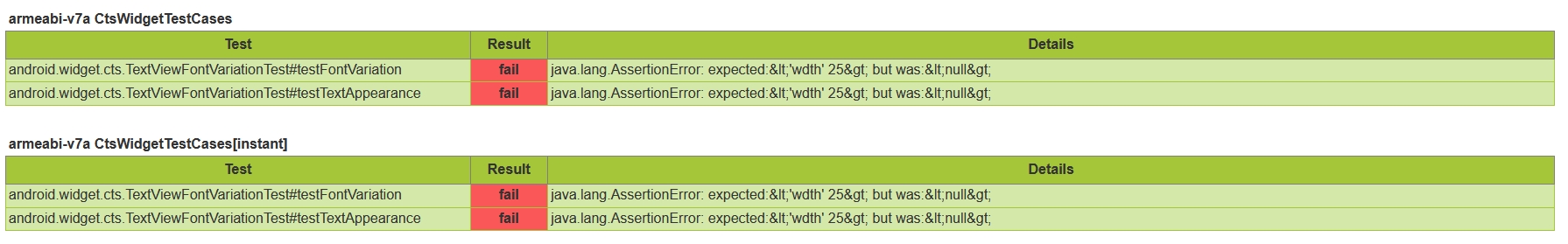

Hi YK, There are new 10 CTS failures, please ask SPTEK to review it Thanks, Jason CtsWidgetTestCases.jpg (220,360 bytes) |
|
|
Hi YK, There is an SmokeTest failure related to #c14302. Verify switching from Cast to other use-cases: - Press Home while Casting, and ensure launcher opens and Casting stops. Our QA reported sometimes return to App page, sometimes return to LiveChannel I think the root cause is the same as c14302. Thanks, Jason |
|
|
Hi Jason About #c14321 SPTEK already fixed the font/text fail issue at v15.541.8 device/amlogic/eagle changed from c54bbc5054249c3b01b56af19f5848ca26bd2a14 to c7365a927856d631e020f650c4021039e9120f4f [+] Fri Oct 13 14:18:56 2023 +0900 | april4th@sptek.co.kr | c7365a9 | [BIDAT-357] Remove SMALLER_FONT_FOOTPRINT build option for resolving CTS fail case Please check the font/text failure items again with v15.541.8 version Thanks YK.Jung |
|
|
Hi YK, >>About #c14321 >>SPTEK already fixed the font/text fail issue at v15.541.8 >> device/amlogic/eagle changed from c54bbc5054249c3b01b56af19f5848ca26bd2a14 to c7365a927856d631e020f650c4021039e9120f4f >> [+] Fri Oct 13 14:18:56 2023 +0900 | april4th@sptek.co.kr | c7365a9 | [BIDAT-357] Remove SMALLER_FONT_FOOTPRINT build option for resolving CTS fail case >>Please check the font/text failure items again with v15.541.8 version I've confirmed the CTS 10 failures have been fixed with 15.541.8 Thanks, Jason |
|
|
Hi YK, Our QA has finished 15.541.6 CTS: 10 failures -> I've Confirmed these failures has been resolved in 15.541.8 GSI/STS/VTS/GTS/TVTS/CTS-V: Done BTS: 1 PushAgentService warning. our 3PL said there is a MBA key word, we can ignore it. we want refer Inteks' 3PL opinion. SmokeTest: 1. Settings icon is black in native UI (BFXBTF-527) 2. Notification issue (BFXBTF-528) 3. Homekey behavior (BFXBTF-531) 4. 1st focus loss issue (BFXBTF-529) 5. 2nd focus loss issue (BFXBTF-530) 6. App soring, Our QA said that they remember 15.537.56 support apps sorting in WebUI. They also said they see the icon position change in 15.541.6 It looks like current WebUI support app sorting, but they don't know how to trigger it correctly. Please check it. 7. Verify switching from Cast to other use-cases: - Press Home while Casting, and ensure launcher opens and Casting stops. The Home button behaves strangely, just like item 3. This case is related to Homekey behavior, I think the root cause is the same as 3 (BFXBTF-531) Thanks, Jason |
|
|
HI Jason About Notification issue (BFXBTF-528/BPM-23165) https://jira.skbroadband.com/browse/BPM-23165 SKB/UX plans to change it like this. - STB Boot and enter the HomeMenu - Press the [Previous] key to enter the HomeMenu - Press Home Button to enter the HomeMenu The screen(HomeMenu) is continuously displayed (the 'Google notification' icon here is continuously displayed) please check attached image.png Can this meet Google requirement? Please check it Thank you YK.Jung image-4.png (175,674 bytes) |
|
|
Hi YK, Our QA verified top menu - notification issue with 15.541.16 this morning. It looks good to us. By the way, behavior of notification is OK, but top menu's icon can not be displayed correctly with Taiwan network. Thanks, Jason |
|
|
Hi Jason There is an issue where top menu(DockMenu) icon is not displayed overseas (Taiwan network) This issue is under discussion in jira below https://jira.skbroadband.com/browse/BPM-23924 As far as I know, there is no problem with FXN/3PL Google test because connecting to vpn. is it correct? Thank you YK.Jung |
|
|
Hi YK, Based on previous experience, VPN: Operation is slow in Home / Can see the icon (Is operation improved in 15.541.16 ? or is the root cause related to CSSIP ?) Taiwan network: Operation is smooth in Home / Can not see the icon. In current situation, I still can asked our QA/3PL test HomeUI with VPN. But we need to guarantee that the operation must be smooth during test. Thanks, Jason |
|
|

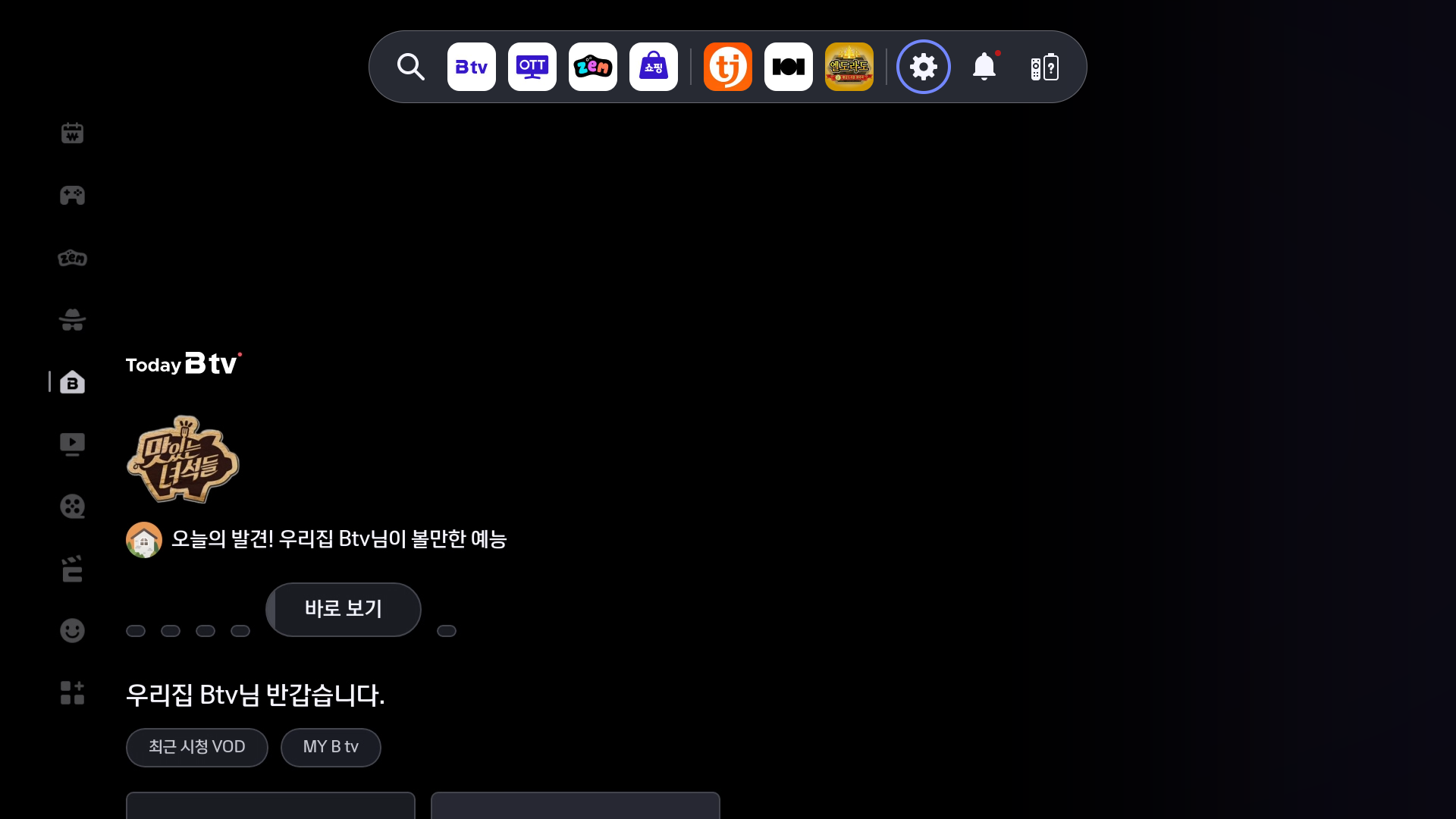

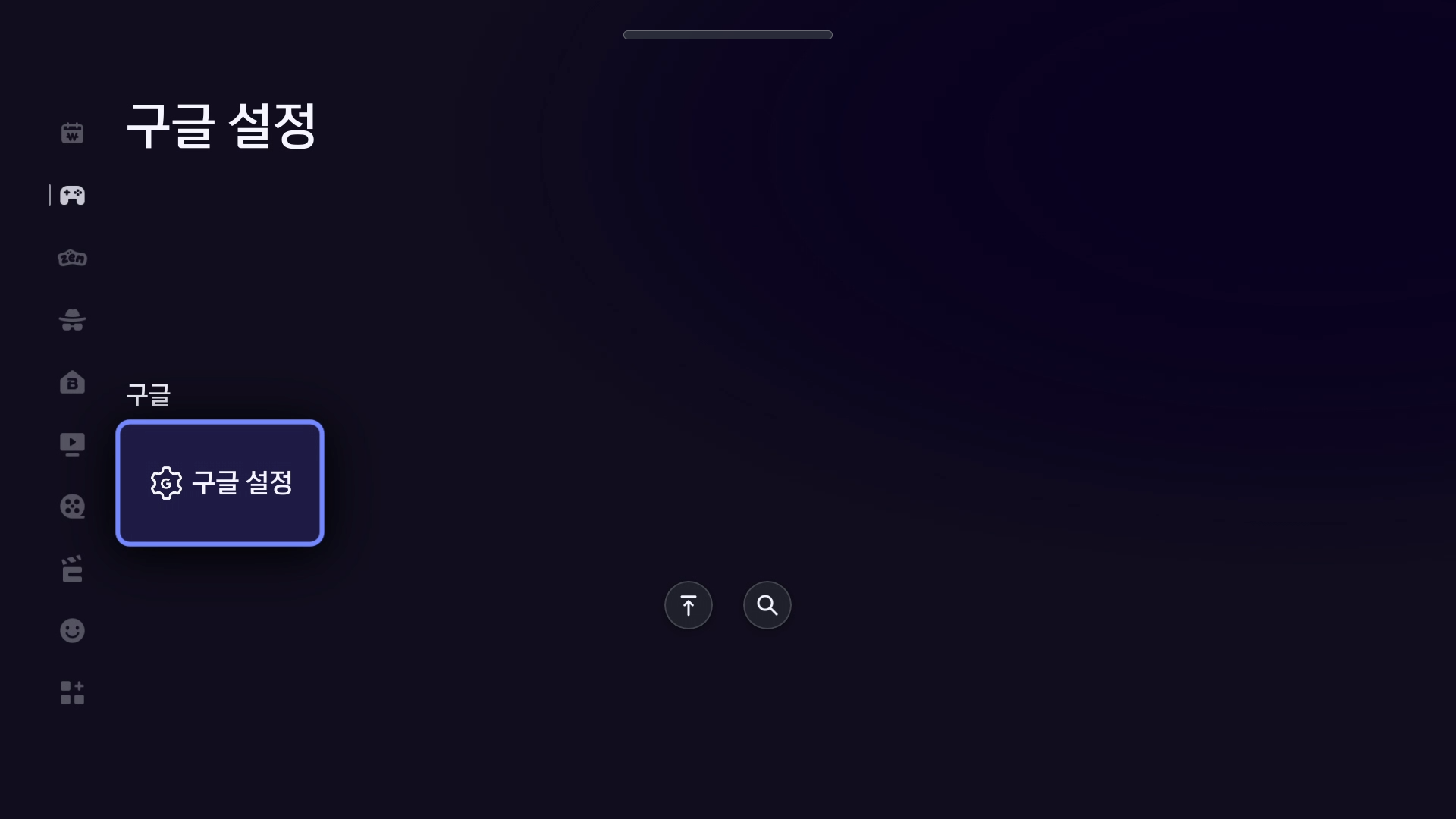

Hi Jason There are two Google Setting menu at UI541 1) DockMenu (top menu) , case_1.png 2) 게임&앱 (Game & apps) -> 구글 설정 , case_2.png SKB wants to remove 2) Will there be a problem with Google approval if SKB remove 2) ? Thanks YK.Jung case_1.png (198,238 bytes) case_2.png (114,995 bytes) |
|
|

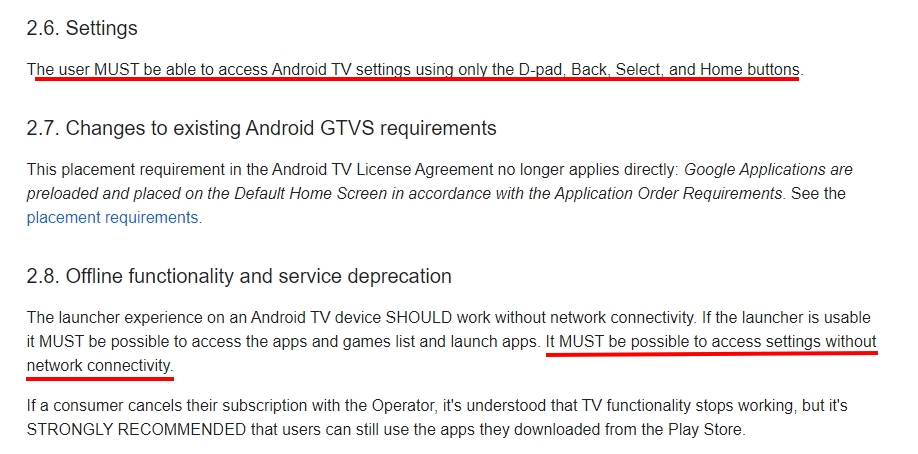

Hi YK, Please check the attachment, (customer_requirement.jpg) I think Digicap also has this document. Thanks, Jason customer_requirement.jpg (246,781 bytes) |
|
|
Hi Jason The answer SKB wants is to check if there is no problem removing the item 2) "게임&앱 (Game & apps) -> 구글 설정" Is there no problem with Google approval even if I remove item 2) at SKB? Thank you YK.Jung |
|
|
Hi YK, Please check it in offline mode. As far as I know, the dockMenu only work in WebUI (on-line mode) Does SKB also want to remove TvSettings from Game & apps in offline mode (native UI) if so, how to access TvSettings in offline mode. (Please check 2.8 Requirement) Thanks, Jason |
|
|

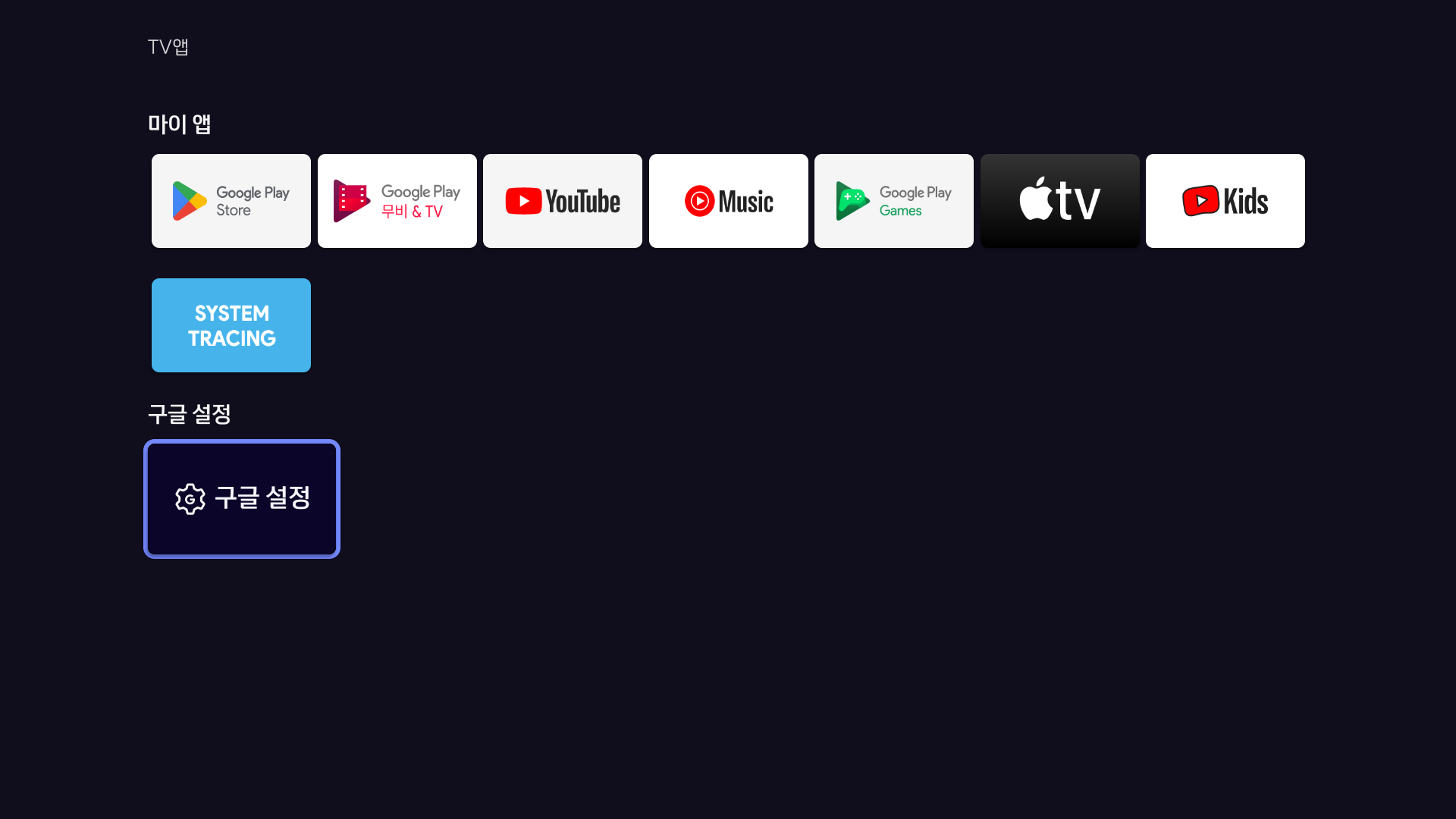

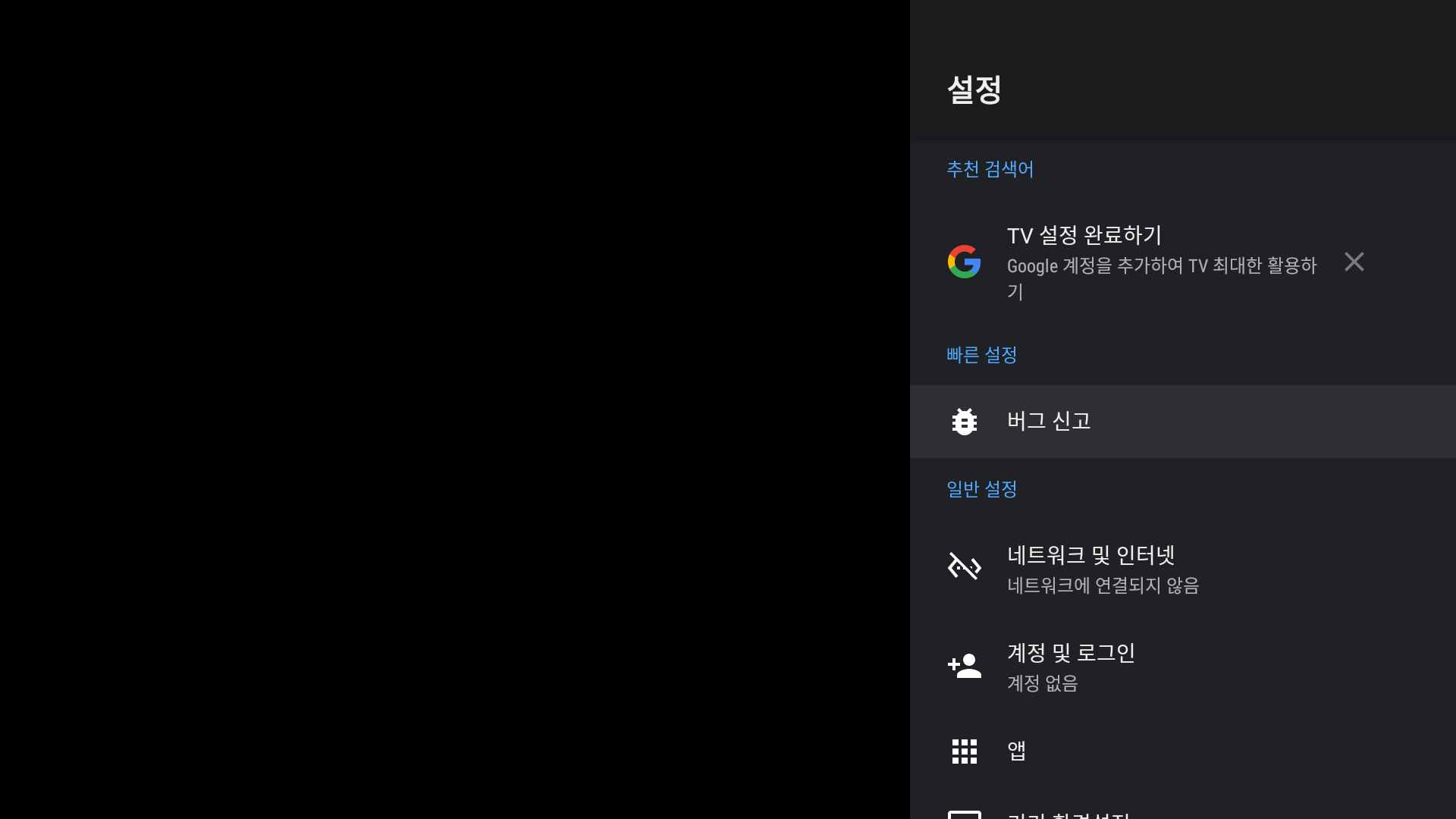

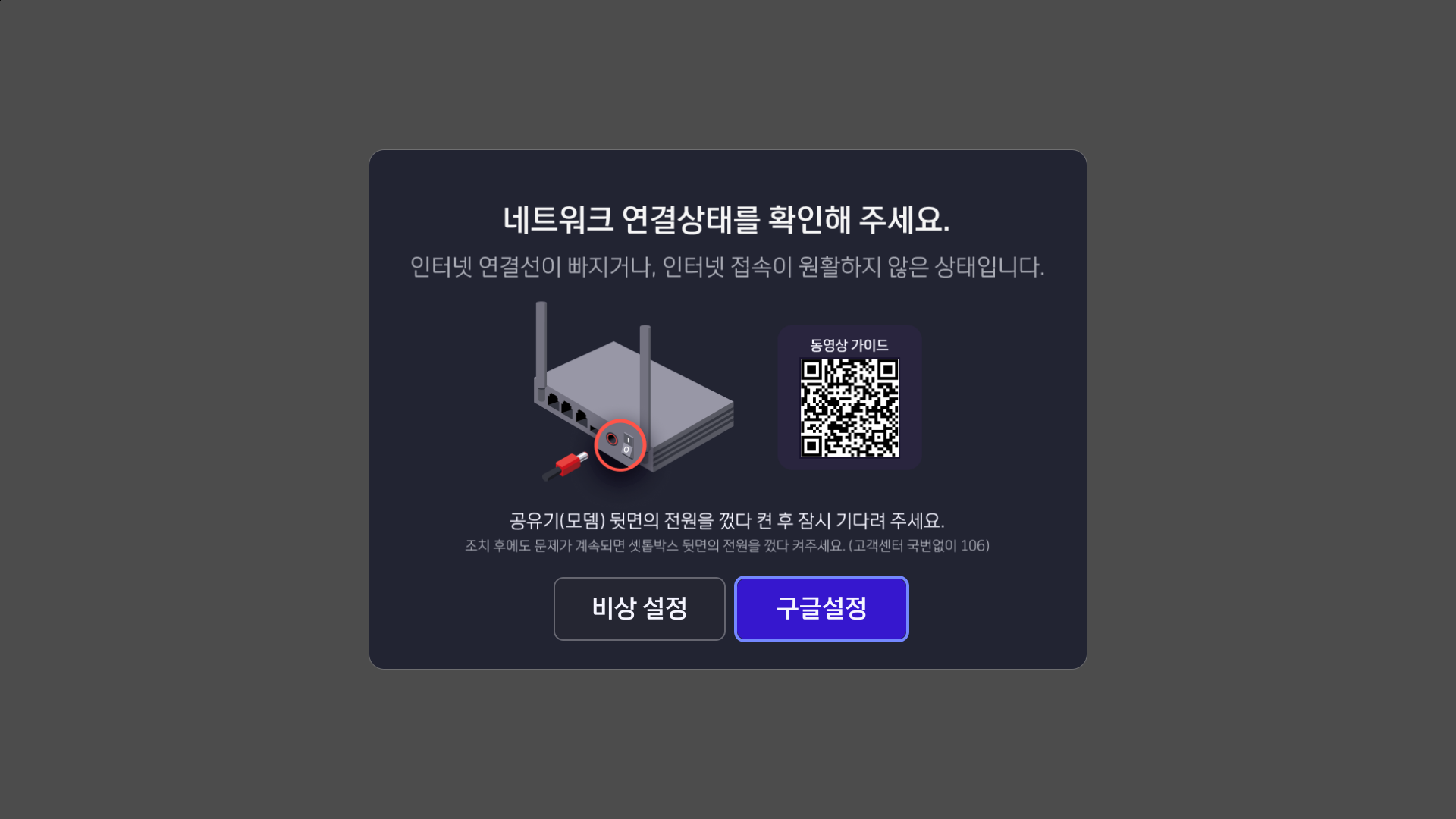

Hi Jason In offline mode, tester can enter the Google Settings menu in the following step. 1) capture001.png 2) capture002.png 3) capture003.png then , Is there no problem with Google approval even if I remove item 2) at SKB? Thank you YK.Jung capture001.png (156,781 bytes) capture002.png (76,632 bytes) capture003.png (57,622 bytes) |
|
|
Hi YK, Our QA said it's OK for Google certification. Thanks. Jason |
|
|
Hi Jason On SKB , UI541 VCS FW is alomst complete ( ~ 11/10) SKB want to get Google approval with finial VCS FW - Finial FW will be built on 11/09 - SKB want to get Google approval by 11/17 So please check the Google Test issue with FW v15.541.22 version ( It is said that the previously mentioned issue has been resolved. please check it again ) And let me know if there is any issue in the self-MR process. Thank you YK.Jung |
|
|
Hi YK, Verify with 15.541.22 SmokeTest: >>1. Settings icon is black in native UI (BFXBTF-527) Pass >>2. Notification issue (BFXBTF-528) pass 3. Homekey behavior (BFXBTF-531) 3-1 Sometimes we see a black block in the middle of the screen. (not only screen 0, but also app pages.). Please refer to black_block_in_screen0.mp4/black_block_in_app_page.png 3-2 Press Home during playing YouTube expected result: screen will back to app page then redirect to screen 0 actual result: There is a Youtube video frame between the application page transition to screen 0 when pressing the home button. Please refer to yt_frame.mp4 (timestamp 31 seconds) reproduce video: Europe 4k - Scenic Relaxation Flim With Calming Music 3-3 green broken screen, please refer to green_screen.mp4 >>4. 1st focus loss issue (BFXBTF-529) pass 5. 2nd focus loss issue (BFXBTF-530) pass >>6. App soring, Our QA said that they remember 15.537.56 support apps sorting in WebUI. They also said they see the icon position change in 15.541.6 >>It looks like current WebUI support app sorting, but they don't know how to trigger it correctly. Please check it. Sometimes we see the lose focus issue, but we don't know the reproduce steps. >>7. Verify switching from Cast to other use-cases: >> - Press Home while Casting, and ensure launcher opens and Casting stops. >> The Home button behaves strangely, just like item 3. >> This case is related to Homekey behavior, I think the root cause is the same as 3 (BFXBTF-531) We can back to screen 0 correctly, but after backed to screen 0, the background change to black. Thanks, Jason black_block_in_screen0.mp4 (8,336,741 bytes) yt_frame.mp4 (12,647,570 bytes) green_screen.mp4 (4,060,123 bytes) |
|
|
Hi Jason The UI541 VCS FW' BMT schedule has been change until Friday this week because there are still major issues ( it was decided at this morning's meeting ) I'm not sure if the finial FW will be built this Thursday(Nov/16th) or Friday(Nov/17th Anyway , the VCS(UI541)'s field deploy schedule is next wed(Nov/22nd) ( fixed ) So Fail should not occur during Google self-test with the final FW. Please review whether there is any problem with Google self-test with the final FW that is currently built. (there will also be a build today.) I will let you know if there is any update Thank you YK.Jung |
|
|
Hi YK, >>Please review whether there is any problem with Google self-test with the final FW that is currently built. How to review it ? Which test suite or test item you want to verify? Thanks, Jason |
|
|
Hi Jason There is no such thing. It's about doing Google tests as much as possible. Please review the test items that can be checked soon (ex BTS) And the CTS / CTS-on-GSI that take a long time during the xTS test, please proceed continuously without starting again whenever the FW is released. Or if you think there's a better way to do it, you can go ahead And other manufacturers are also testing, so the items that fail will be shared with each other. Thank you YK.Jung |
|
|
Hi YK, Could you let me know which FW version which test suite you want to test? I'll forward it to your QA. Thanks, Jason |
|
|
Hi jason There is a meeting going on inside SKB and the schedule is changing Anyway the official request from SKB is Please proceed with the Google test with version v15.541.26 that jungyu requested to build now Thank you YK.Jung |
|
|
Hi Jason I will close this tickset because FXN got Google approval for VCS FW. Thank you YK.Jung |
